Heating 15.88mm Air Cooling Coils For Air Handling Unit

Product Categories

Shanghai Shenglin M&E Technology Co., Ltd.

Contact Now

Name: Heating 1588mm Air Cooling Coils For Air Handling Unit
Brand: Shenglin
Price: 100 USD

Brand Name : Shenglin

Certification : RoHS

Place of Origin : China

MOQ : 10 pcs

Payment Terms : T/T, Western Union

Supply Ability : 10000 Pcs Per Month

Delivery Time : 15~20 days

Packaging Details : Plywood wooden box or pallet

Price : 100~500USD/Unit

Tube material : Copper

Fin material : Aluminum

Basic tube material : 9.52/12.75/15.88mm

Plate material : Galvanized steel or SUS 316L

Media : Chilled water

Mouting : Floor mounting

Fin type : Flat, corrugated/sine wave

HS code : 8415901000

Contact Now

Cooling & Heating coil For Air Handling Unit

Specification:

Item	Fin Coil Type	Operation Medium	Operation pressure(MPa)	Application
1	Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin	Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin	Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin	Used for combined air handling unit, fan coil etc air conditioning devices
2	Φ18/Φ20 Steel pipe winding with steel sheet	Steam	≤0.2	Used for combined air handling unit, fan coil etc air conditioning devices
3	Φ16/Φ9.52/Φ12.7 Copper tube with aluminum fin	Brine	≤1.6	Used for heat transfer in cold storage and all kinds of low temperature systems
4	Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin	Ethylene glycol	≤1.6	Used of energy recovery and low temperature system devices
5	Φ16 Copper tube with aluminum fin	Ice mud	≤1.6	Used for dry operation condition, fresh air dehumidification etc systems
6	Φ5/Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin	R22	≤1.9	Used for industry and commerce air conditioning system, refrigeration equipment etc
7	Φ5/Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin	R407C	≤1.9	Used for industry and commerce air conditioning system, refrigeration equipment etc
8	Φ5/Φ9.52/Φ7.94/Φ7 Copper tube with aluminum fin	R134a	≤3.1	Used for industry and commerce air conditioning system, refrigeration equipment etc

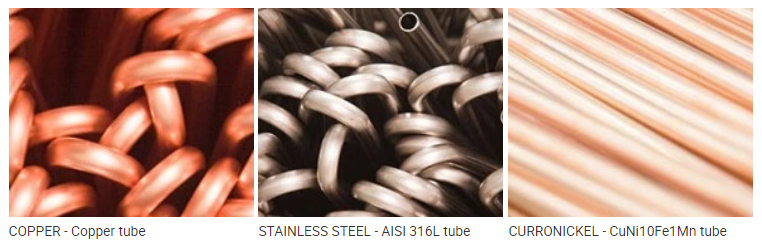

Tube material range:

Heating 15.88mm Air Cooling Coils For Air Handling Unit

Fin material range:

Heating 15.88mm Air Cooling Coils For Air Handling Unit

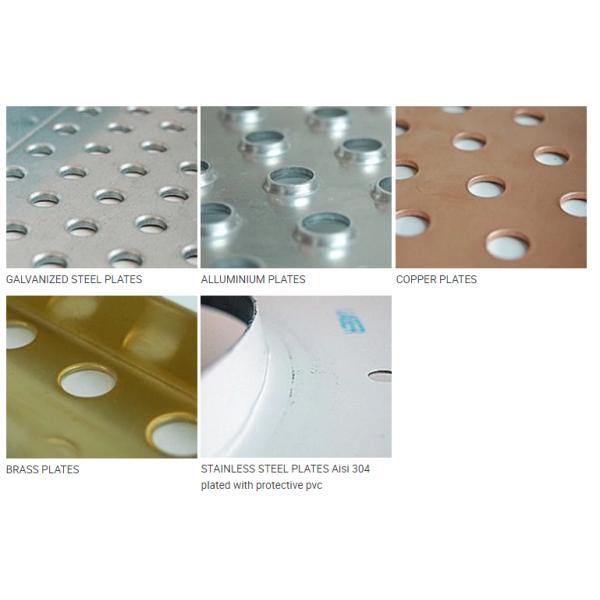

Plate material range:

Heating 15.88mm Air Cooling Coils For Air Handling Unit
